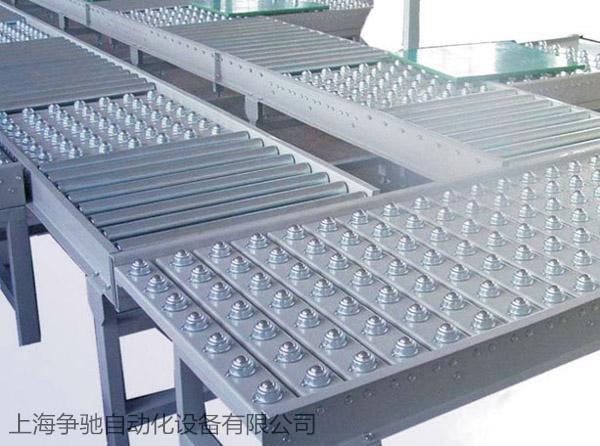

Combined Roller Conveyor Line
The roller assembly line G
Article source：http://m.gywsjd.cn Release time：2016-02-22 16:51 Browse times：
Technical parameters:
Roller conveyer combinations on roller to complete the transfer for to all types of boxes, bags, trays and other pieces of cargo transport, bulk materials, small items or irregular items need to be placed in the tray or container for conveying. No power roller conveyor is mainly composed of roller, leg, brace, adjustable foot etc..
Roller conveyor is easy to interface between the filter, can be used a number of roller lines and other transportation equipment or plane composition complex logistics delivery system, multi process. No power roller conveyor is suitable for the bottom plane transport goods. A large amount of transportation, speed, running briskly to realize many varieties of triage line transmission characteristics, is the most widely used in conveyor type a.
Optional rack material: carbon steel, stainless steel, Aluminum Alloy etc..
Roller material: galvanized steel, carbon steel, carbon steel, stainless steel, plastic bags, PVC, ABS Aluminum Alloy.
Custom unpowered roller conveyor please call or please confirm the following technical parameters:
1, conveying object length, width and height;
2, each conveying unit weight;
In 3, at the bottom of the carrier material;
4, there are no special requirements on the working environment (such as temperature, humidity, chemical effect etc.);
5, the conveyor is fixed or mobile;
6, other special custom;
To ensure that the goods can be transported smoothly, must at any point in time is at least three roller and conveying material to keep contact. The soft bag packaging and pallet conveying when necessary.
