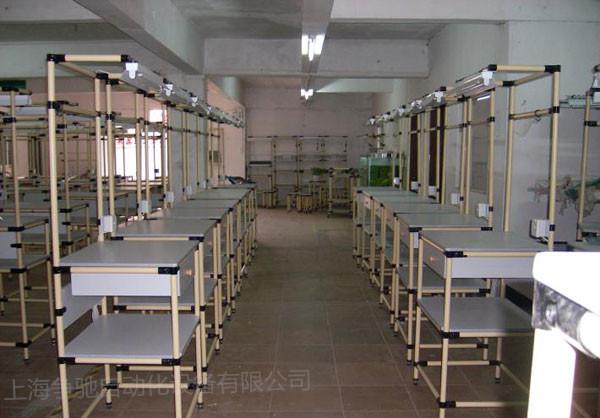

Line working table by the following basic components:

1, the overall framework refers to constitute the main line working table, like a person's bones, it is part of a bar table the most basic and most indispensable. Bar and the overall framework by the outer diameter of 28mm standard flexible wire rod + line rod connecting components (flexible wire rod rice yellow, white, black and other colors, metal wire rod joints with silver white and chrome joints and black electrophoresis joint) is combined work units, each parts can be reused, and therefore, the continuous transformation is easy.

2, a supporting foot: the adjustable foot cup (adjustable foot cup, Shockproof foot cup, conductive foot cup, anti static foot cup) or casters (slab casters, expansion type caster).

3, the panel: composite board, fire board, anti-static ESD plate, multi-layer plywood, stainless steel plate, hollow plate...)...

4, the lighting system includes: lighting lamp, switch, socket, independent wire etc..

5, the logistics system: refers to the composed of multiple transportation device, such as the conveyor belt, a slide rail, a turntable and a manipulator, completion of the workpiece, the supply and transmission system, it is the main part of the bar table.

6, the other part includes a drawer, electric chute, process instructions, alarm lamp etc..

Specifications

Bar table are non-standard equipment, no fixed specifications. On the market at present in most of the specifications are the following:

1, unilateral solo work bar table: table length 800mm, width 600mm, height 1800mm (Taiwan panel to the ground for the 750mm), the overall size is 800 (L) *600 (W) *750-1800 (H) mm;

2, unilateral double table line working table: table length 2000mm, width 600mm, high 1800mm (Taiwan panel to the ground for the 750mm), the overall size is 2000 (L) *600 (W) *750-1800 (H) mm;

3, bilateral double line bar and Taiwan (table on each side of a workstation): table length 1000, 1200 mm width, height 1800mm (panel to the height of the ground general 750mm), the overall size of 1000 (L) *1200 (W) *1800 (H) mm;

4, bilateral four bit line bar and Taiwan (table on each side of the two station): working table length of 2400, width of 1200, highly 1800 mm (panel to the height of the ground general 750mm), the overall size of 2400 (L) *1200 (W) *1800 (H) mm;

The above table size is for reference only, every user's needs are not the same.
